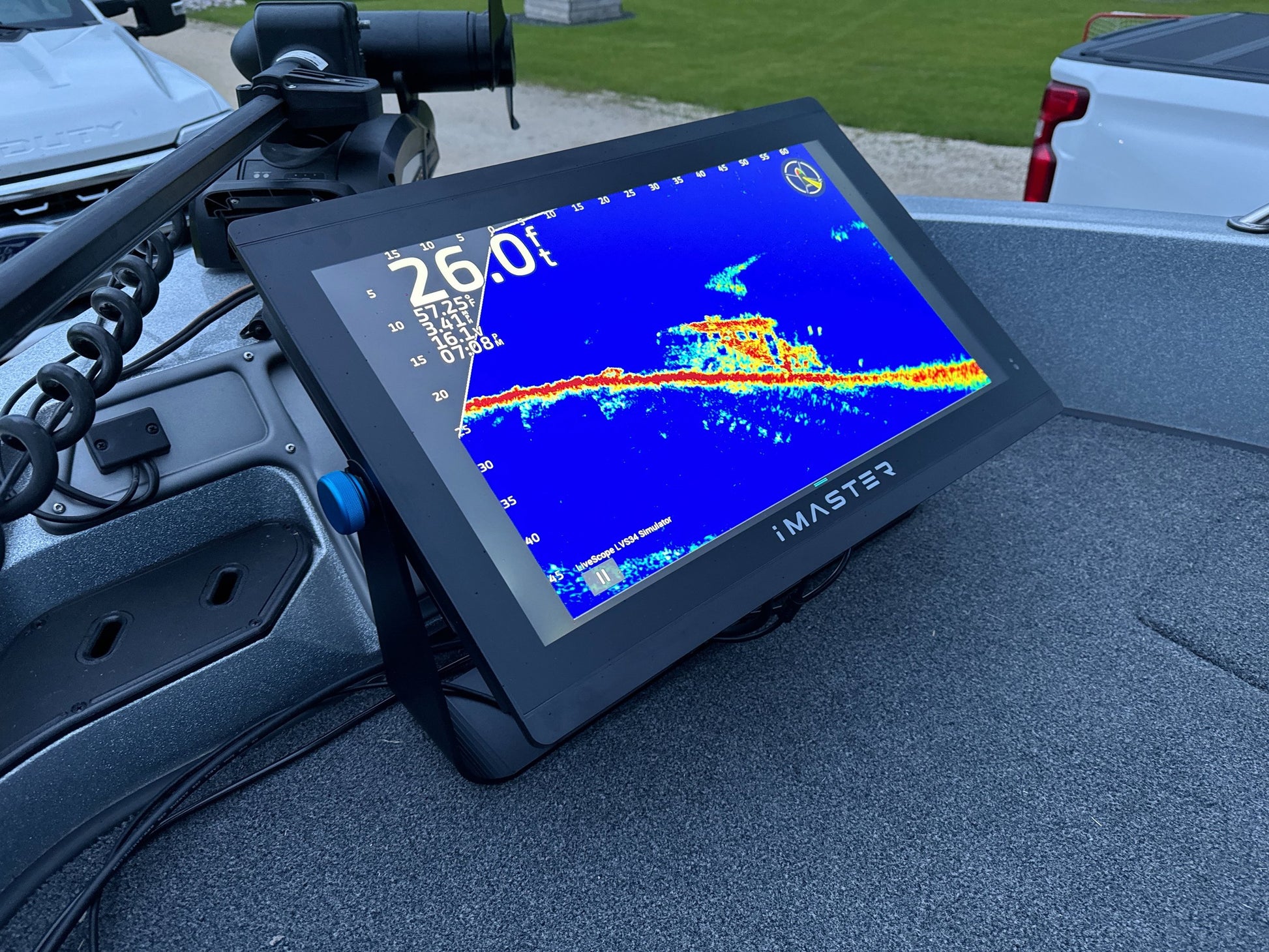

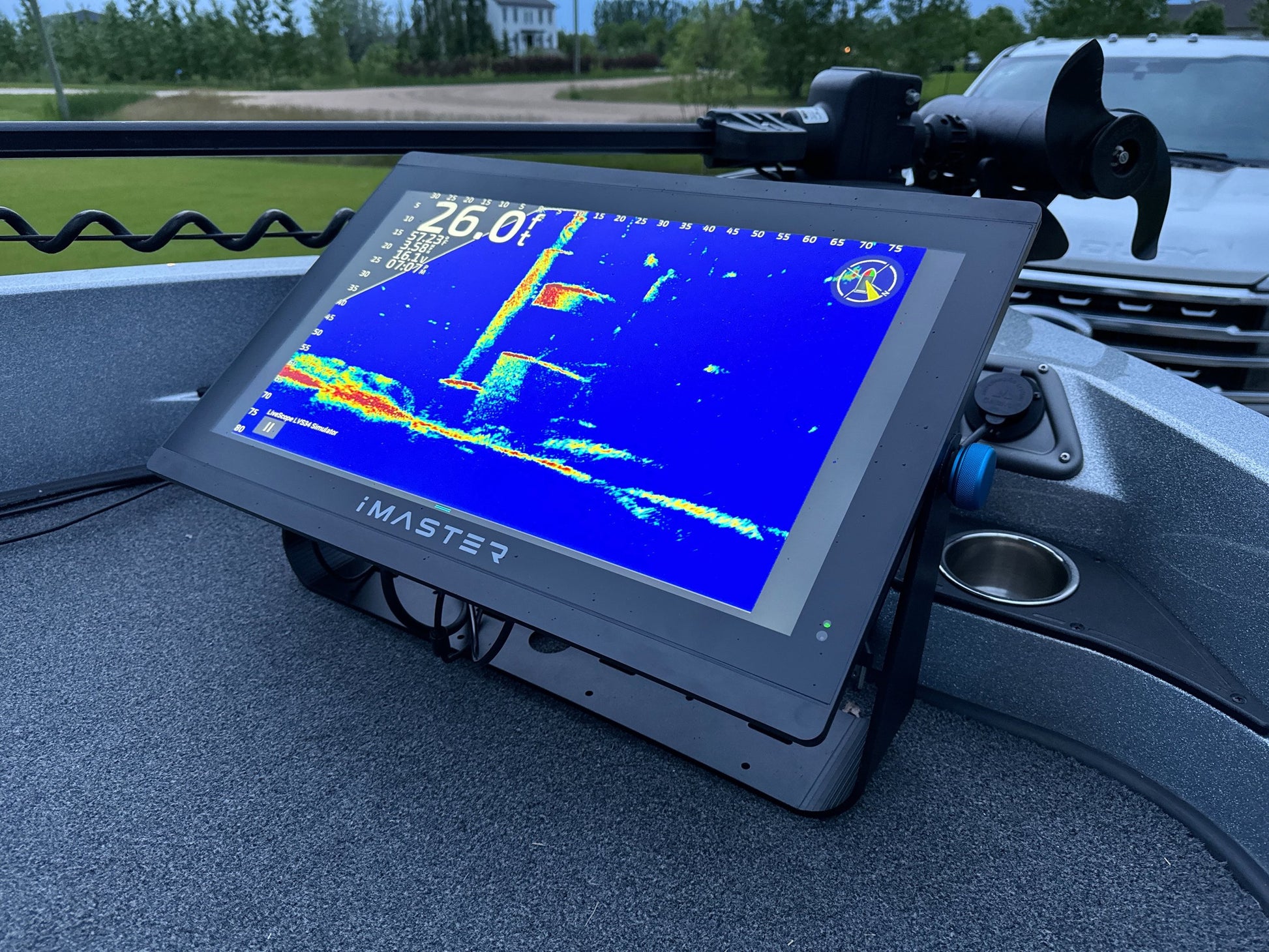

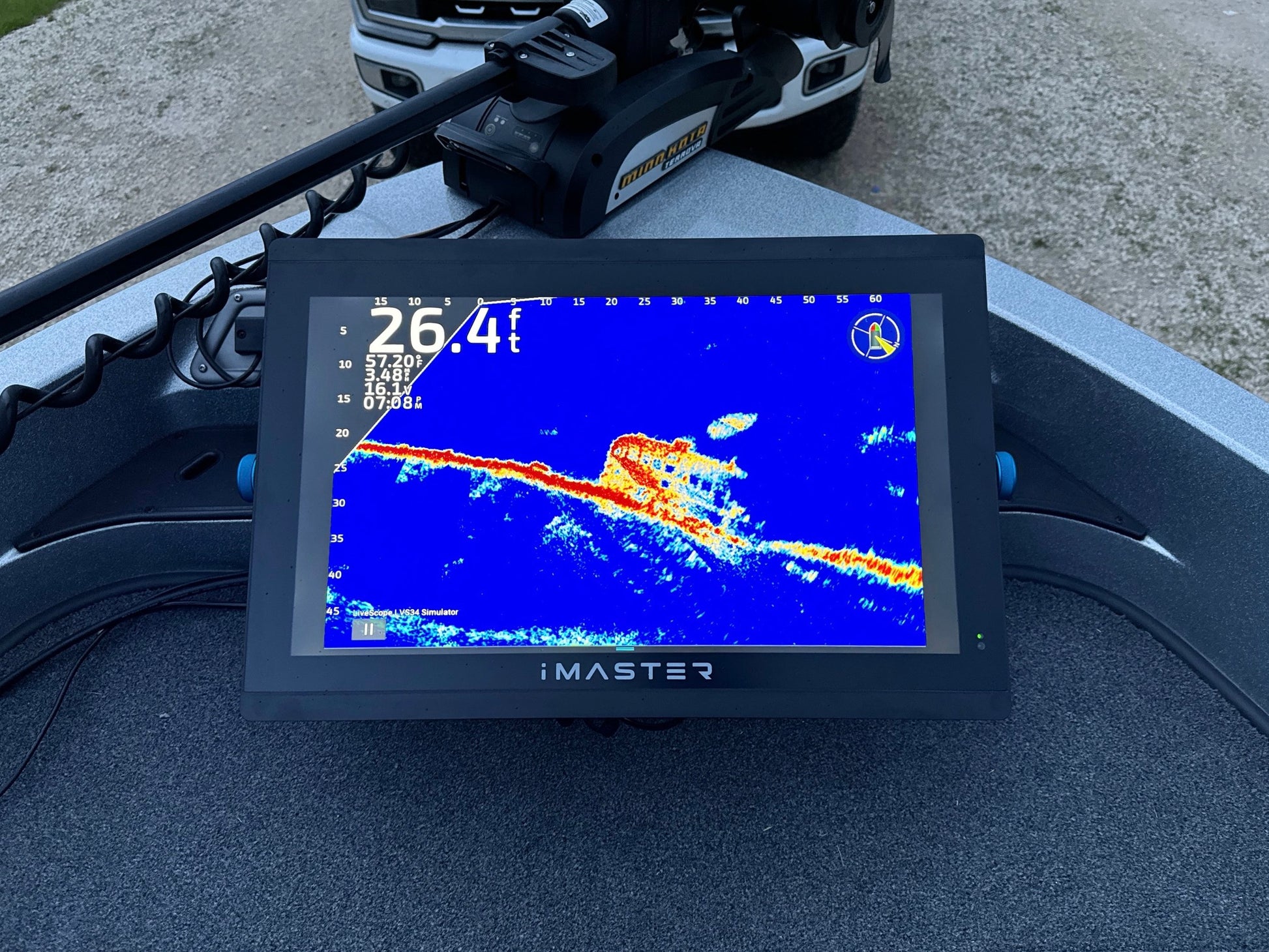

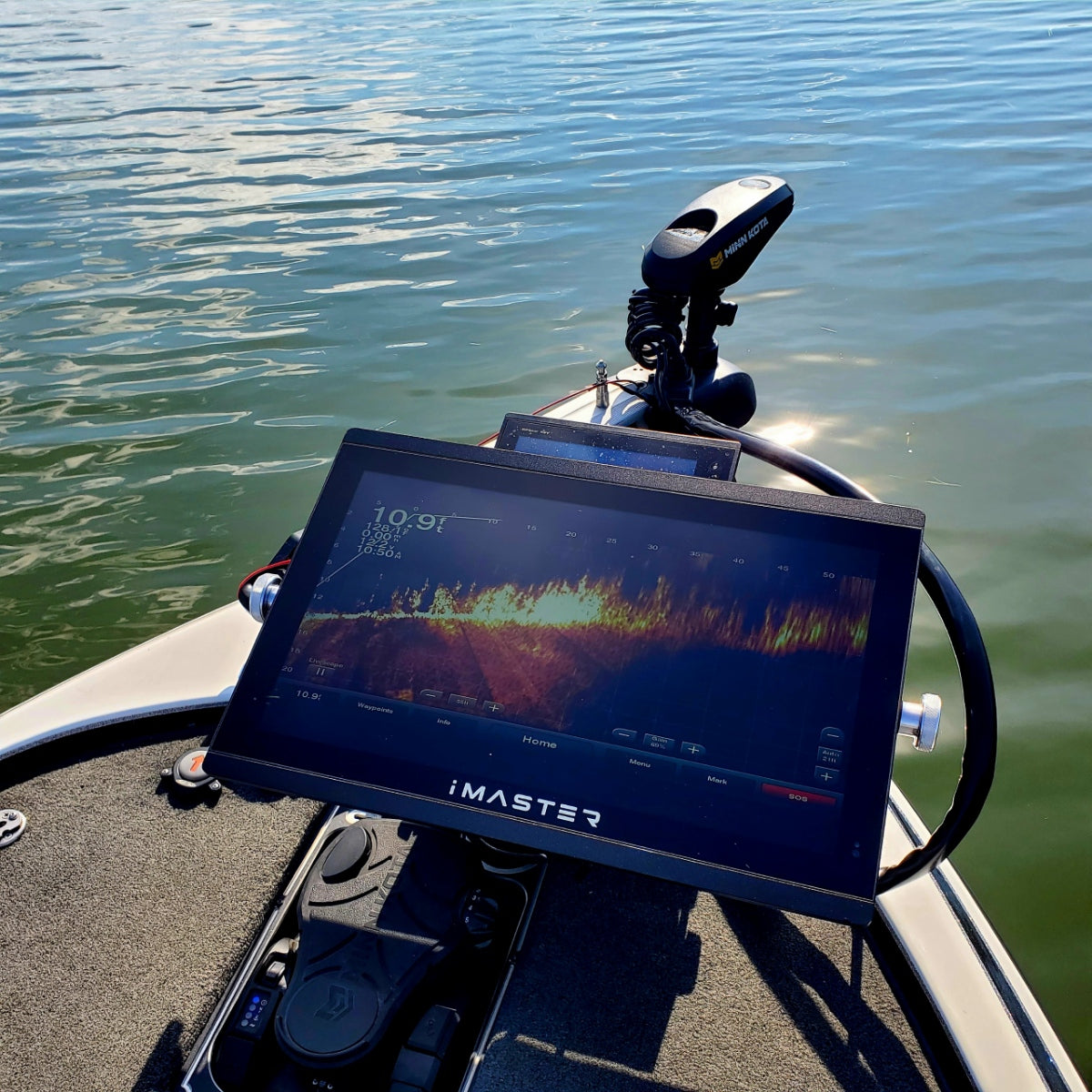

iMASTER Multi-Function Display

WANT A BIGGER SCREEN FOR LIVESCOPE?

Enjoy LiveScope on a full HD display, available in 24in, 19in, and 16in sizes.

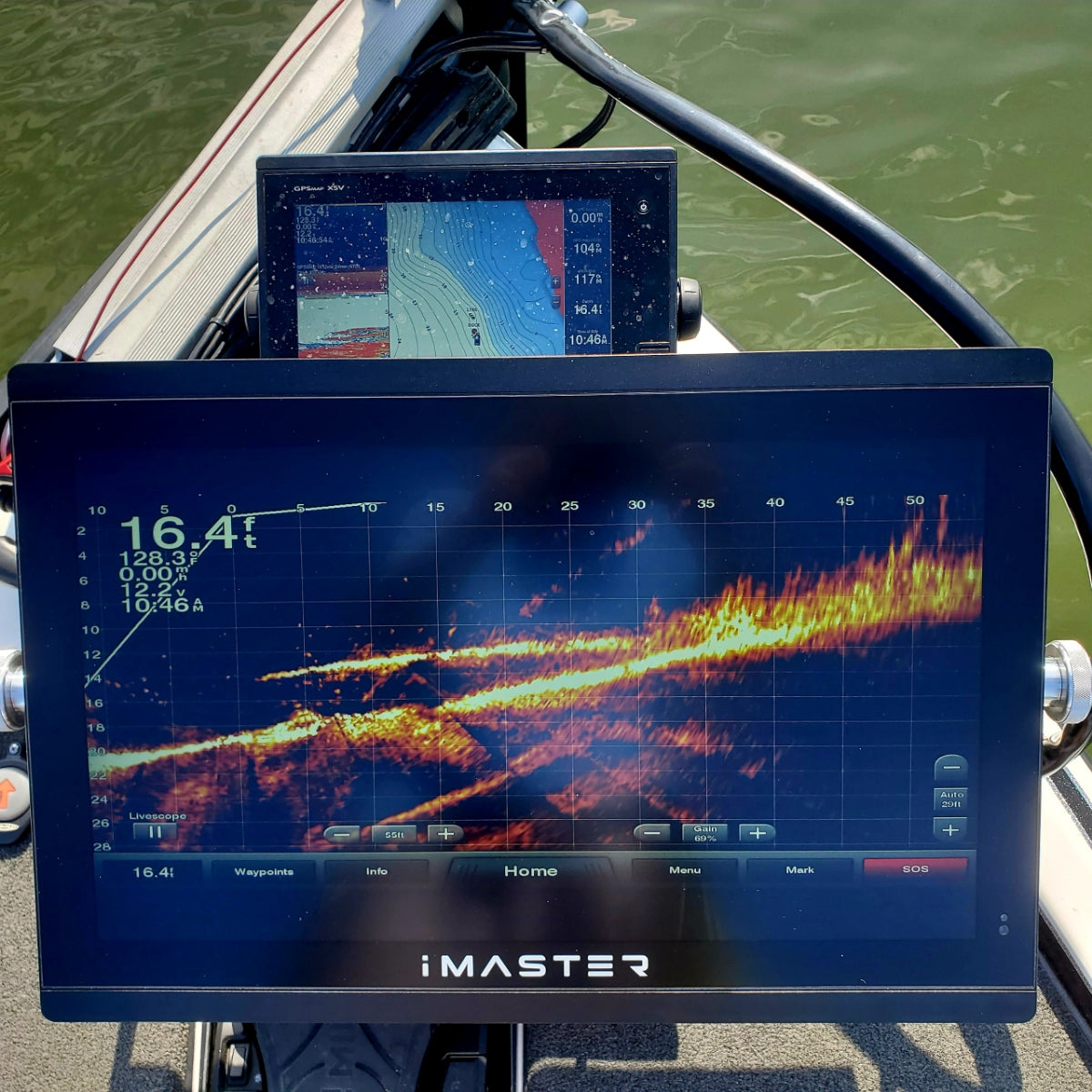

Connects to you Garmin GPSMAP 8610, 8612, or 1243 via HDMI and USB cables (included). Functions identically to a your GPSMAP screen, including for direct touch control of your remote chartplotter.

FEATURES:

• Full HD Resolution: 1920x1080 (16:9)

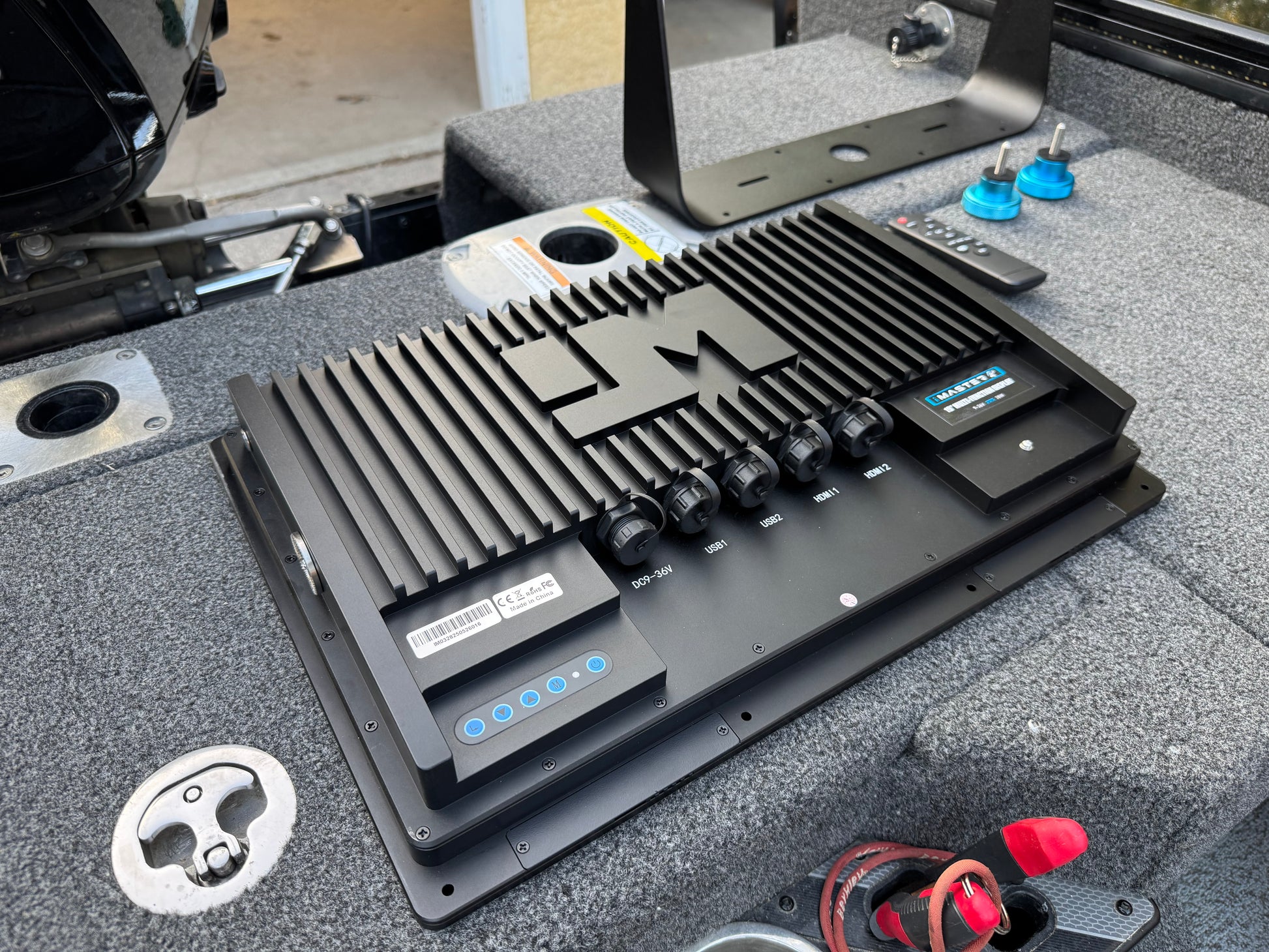

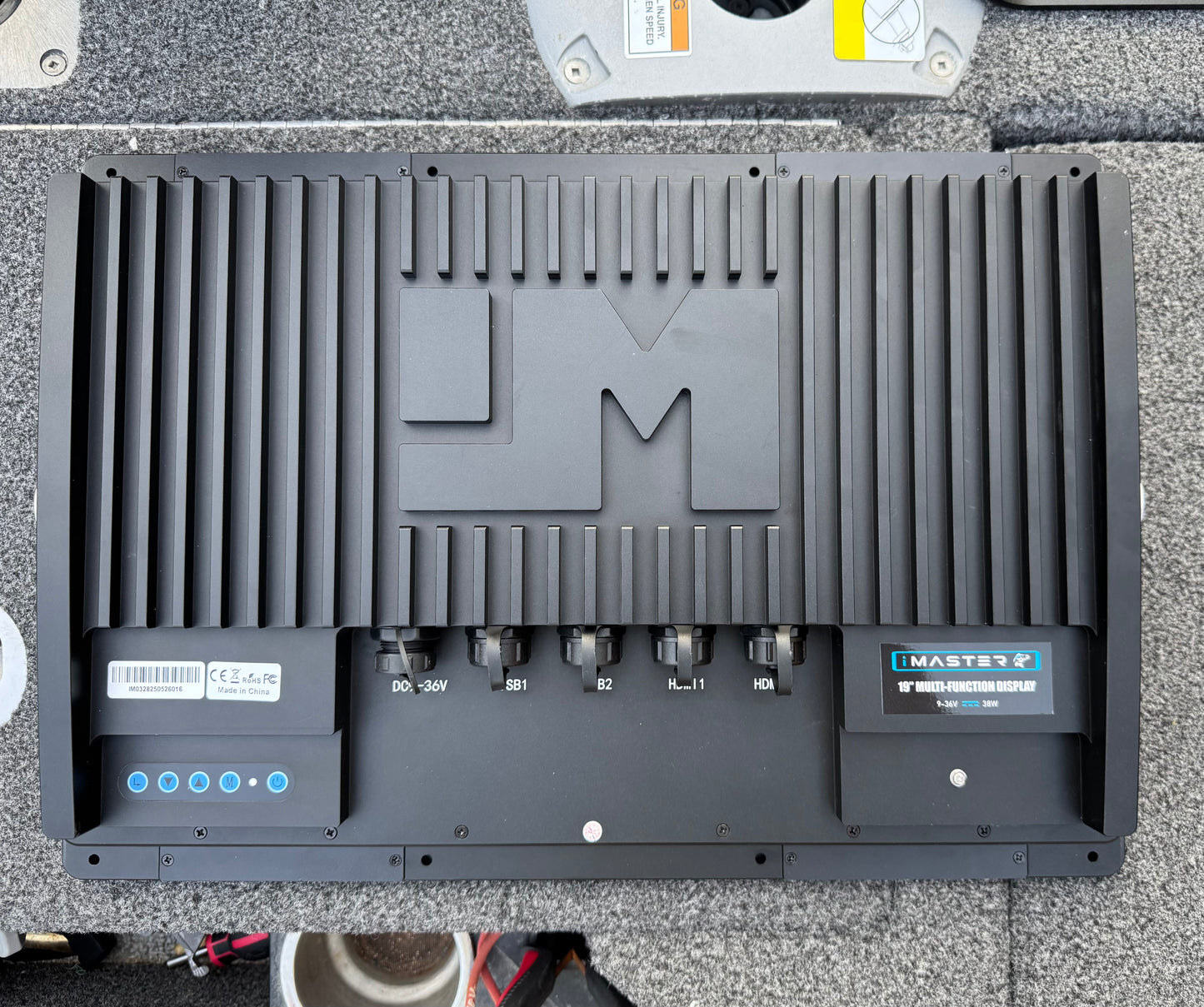

• Inputs: two HDMI & USB on the 16” & 19” models with quick select button on the side

• Full touch control your Garmin Livescope unit (GPSMAP 8610, 8612, 1243)

• Front anodized aluminum alloy bezel, UV-protection and Anti-discoloration treatment , Full IP67 waterproof and dustproof, Waterproof connector

• Industrial LCD panel, full view angle, 1500nits sunlight readable, with light sensor for auto dimming brightness

• 10-points PCAP touch panel, cover with 2mm tempered glass(Chemically Strengthened) with 7H surface hardness. Anti-glare surface treatment

• Wide temperature operation - 20 °C ~ 70°C (-4°F ~158°F)

• Working Voltage 9 - 36V DC

• Optical bonding between touch screen and LCD

INCLUDED IN THE BOX:

• LCD Touchscreen Display

• Remote control

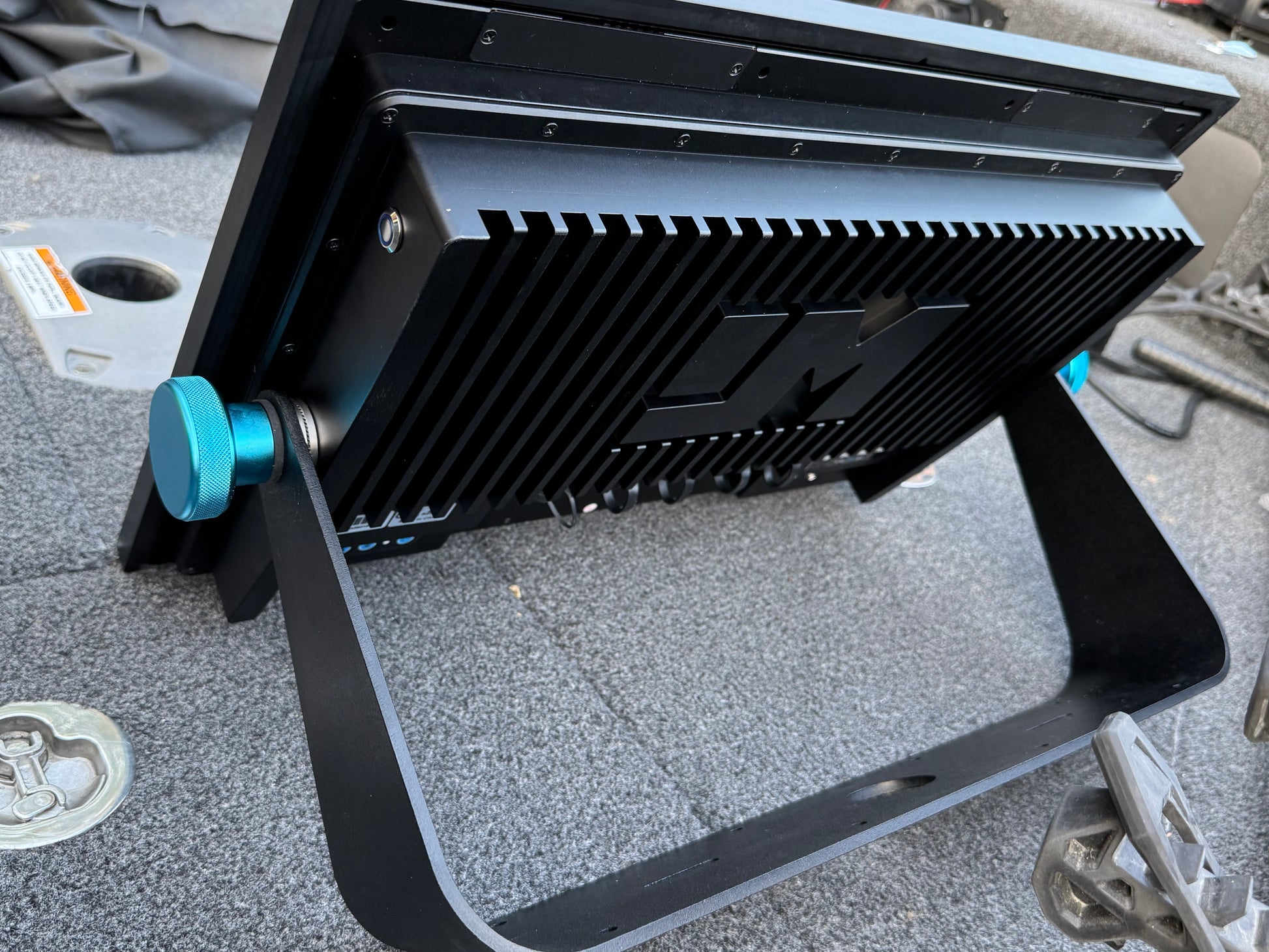

• Gimbal bracket and aluminum thumbscrews

• DC Power, USB, HDMI cables - 8 m (26 ft) length- IP67 waterproof

• Slide-on Screen Protector

SPECIFICATIONS:

Power Consumption

• 53 Watts

Amperage Draw

• 4.42A @ 12V
• 2.21A @ 24V
• 1.47A @ 36V

Recommended Fuse (not included)

• 12V = 7.5A
• 24V = 3A
• 36V = 2A
